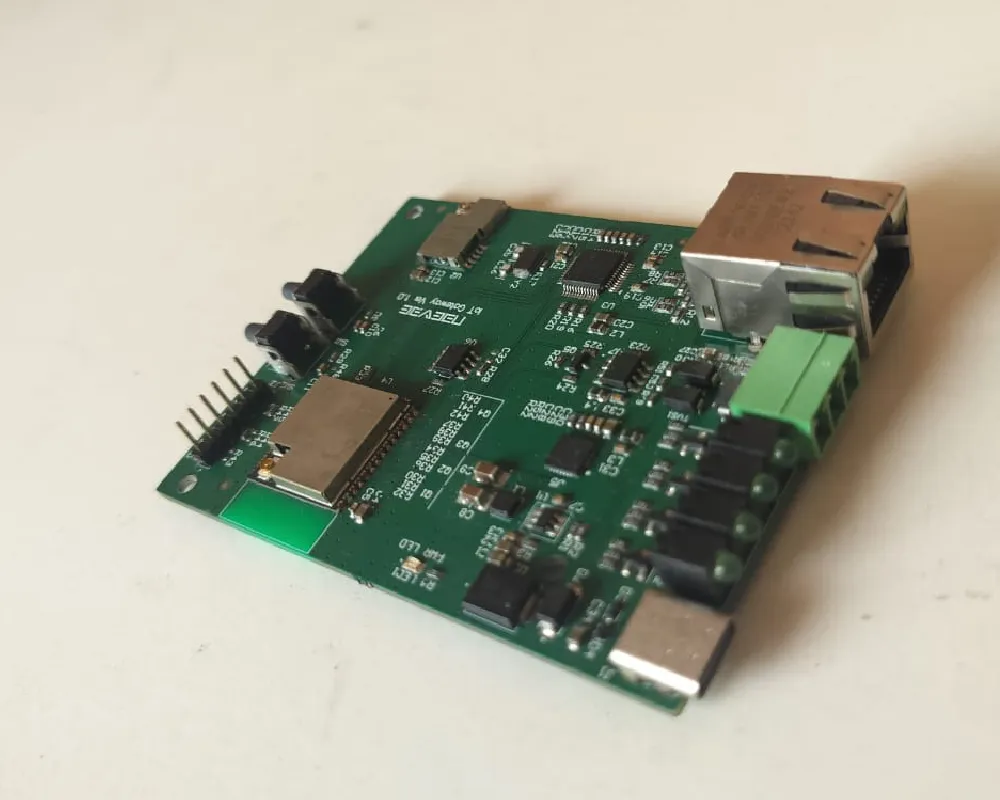

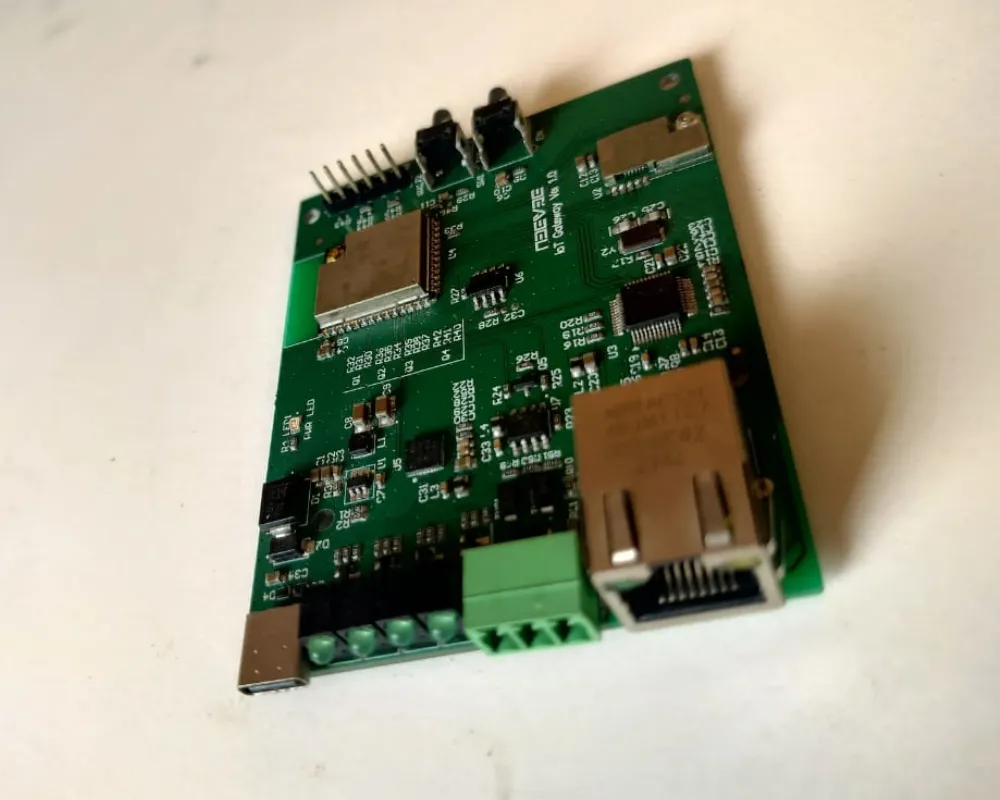

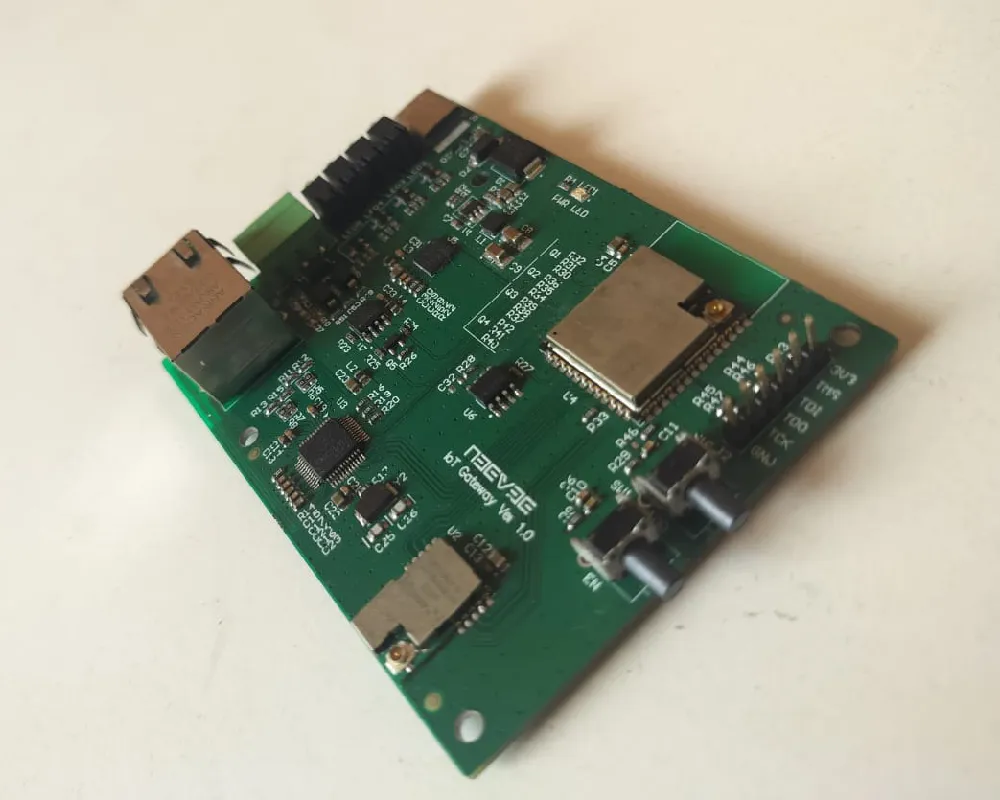

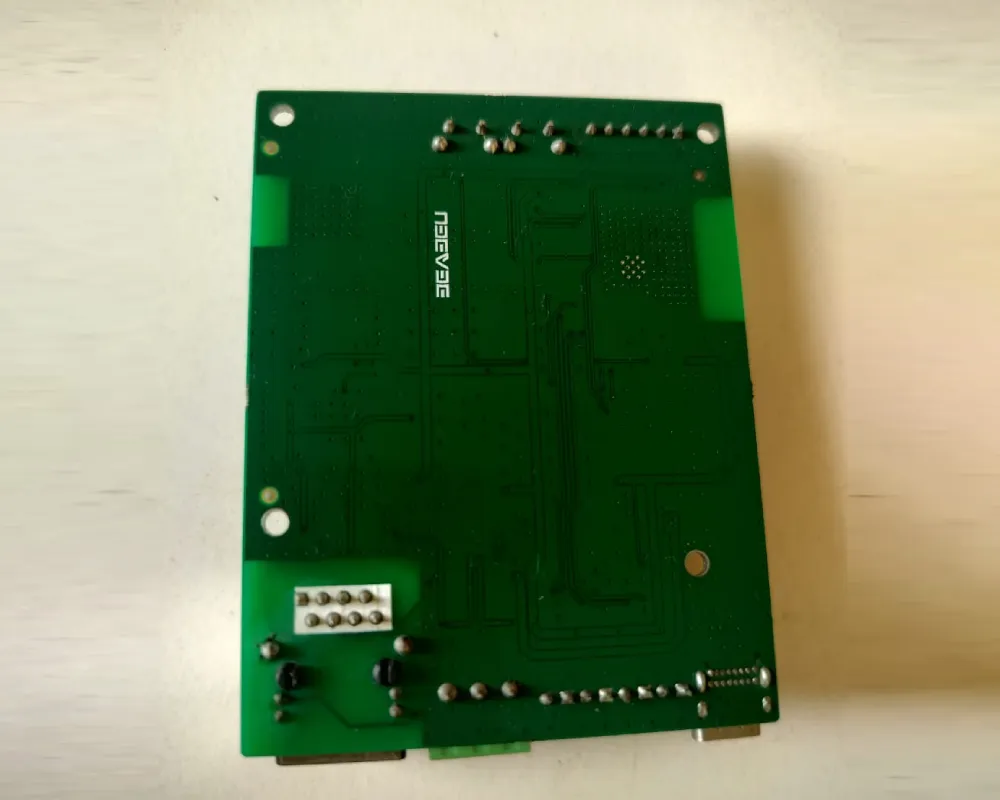

Multi-Purpose IoT Gateway
Our Multi-Purpose IoT Gateway is designed to address diverse client requirements across various industries. It offers:
Fully supports Bluetooth, Bluetooth Low Energy (BLE), Wi-Fi, and LoRa—making it ideal for building scalable and cost-effective wireless sensor networks.
Enables reliable and secure connectivity with leading IoT cloud platforms such as AWS and Microsoft Azure.
Comes with a dedicated IoT Gateway SDK to accelerate application development and enhance system performance.
Our expert team provides complete hardware and software customization services to ensure the gateway aligns perfectly with your specific application needs.
4.9
Trustscore
Specification
Powered by Espressif ESP32-S3 with a dual-core 32-bit LX7 microprocessor, this gateway offers integrated 2.4 GHz Wi-Fi and Bluetooth 5.2 support. It includes on-chip memory with support for up to 16 MB Flash and 16 MB PSRAM—delivering the processing power and flexibility needed for advanced IoT applications.
Integrated with the LR62E SX1262 LoRa module for robust long-range communication in IoT deployments. Also supports 2.4 GHz Wi-Fi (802.11 b/g/n) with data rates up to 150 Mbps (802.11n), Bluetooth 5.0 Low Energy, and Bluetooth Low Energy Mesh with speeds up to 2 Mbps—delivering flexible and reliable wireless connectivity for diverse IoT scenarios.
Equipped with an RJ45 Ethernet port supporting 10/100 Mbps speeds and an embedded TCP/IP stack for reliable network communication. Includes RS-485 interface with Modbus-RTU Master support for industrial device integration, and UART-to-USB for streamlined debugging and development.
Built with a comprehensive set of security features, including secure boot, encrypted communication, secure firmware updates, data-at-rest protection, and secure cloud connectivity—ensuring trusted and tamper-resistant data exchange throughout the device lifecycle.
Application Use Cases
- Implementation:
- Wearable sensors using Bluetooth 5 transmit real-time worker vitals—such as fatigue and heat stress—to the gateway. Integrated with AWS IoT Core, the system can trigger alarms via analog outputs or dynamically adjust collaborative robot (Cobot) operations to reduce risk and enhance worker safety.
- Impact:
- Real Time Worker Presence Location Tracking and Activity Monitoring.
- Implementation
- Operates as a Modbus RTU Master over RS-485 and a Modbus TCP Slave over Ethernet or Wi-Fi—enabling seamless protocol conversion between Modbus TCP and Modbus RTU for smooth interoperability across industrial systems.
- Impact
- Offers the flexibility to interface legacy Modbus RTU devices with modern Modbus TCP networks, enabling smooth interoperability and extending the life of existing industrial infrastructure.
What Sets Us Apart
Solutions are tested and validated to run 24/7 round the clock operation with highest performance, quality and reliability.
Our solutions are completely customizable according to the requirements of our clients and can be white labeled for deployment.
Solutions are developed keeping in mind that it can be made into multiple product variants to address the respective requirements.
IoT Solutions are built with the latest wireless, wires interface, next generation technologies, communication protocols and more.
Product development becomes easier with the development support program to customize and shape the products with time.
We provide non-compete solutions licensing model to our clients, to push their products without any conflict of interest.
