BLE Tag
The BLE Tag is a compact, low-power embedded device engineered for real-time location and status monitoring. Built on Bluetooth Low Energy (BLE) technology, the tracker ensures efficient wireless communication with ultra-low power consumption—perfect for
battery-powered or wearable deployments. Designed for diverse applications including asset tracking, personnel safety, and smart mobility.
4.9
Trustscore
Specification
Enables reliable communication with Bluetooth Low Energy (BLE) 5.0, offering up to 100 meters transmission range (line-of-sight), adjustable TX power from -20 dBm to +4 dBm, and support for standard BLE advertising protocols.
Powered by advanced SoCs like Nordic nRF52840, nRF52832, or ESP32, featuring 32-bit ARM Cortex-M4 or Xtensa dual-core processors. Offers flexible memory configurations ranging from 512 KB to 1 MB flash and 64 KB to 256 KB RAM for efficient firmware execution.
Engineered for ultra-low-power operation, the BLE Tag

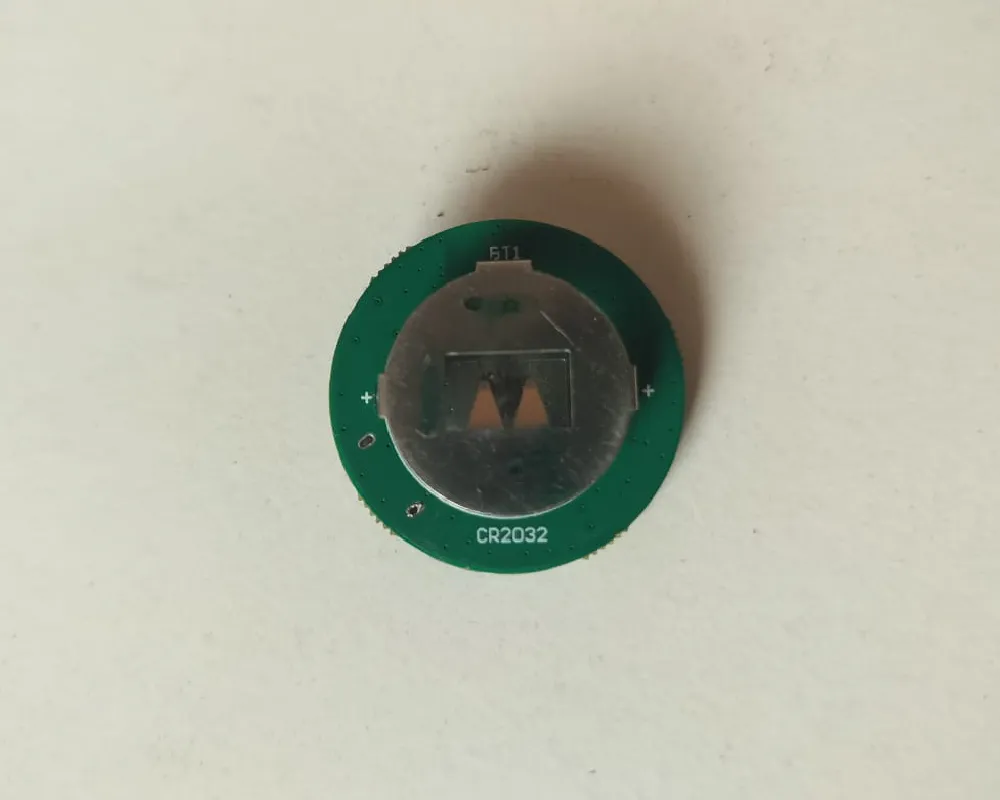

supports coin cell batteries (e.g., CR2032), Li-ion, or
rechargeable power sources. With advanced power
management, it achieves a battery life of 6 months to 2
years based on usage and configuration. In sleep
mode, it consumes less than 10 µA, making it ideal for
long-term, battery-powered applications.
The BLE Tag can be optionally equipped with a range of sensors to extend its capabilities. It features a 3-axis accelerometer (e.g., MPU6050) for motion detection, a temperature sensor with ±0.5 °C accuracy for environmental monitoring, and an SOS push button for emergency alerts—ideal for safety-critical and context-aware applications.
The BLE Tag features configurable GPIOs for
interfacing with buttons, LEDs, or external sensors,
providing versatility for a wide range of applications. It
supports Over-the-Air (OTA) firmware updates via BLE
for seamless maintenance and upgrades. For
development and debugging, optional programming
interfaces such as SWD, UART, or USB are available.
The BLE Tag ensures data security with AES-128 encryption for all BLE transmissions. It also supports strong authentication features such as secure pairing and bonding, protecting against unauthorized access and maintaining data integrity.
Built for reliable performance in diverse environments,
the BLE Tag supports an operating temperature range
of -20 °C to +60 °C and a storage range of -40 °C to
+85 °C. It also endures humidity levels from 5% to 95%
(non-condensing), making it well-suited for both indoor
and outdoor applications
BLE Application Uses
- Implementation:
- Wearable BLE tags are compact, low-power devices that can be easily attached to a child’s clothing or a pet’s collar. These tags use Bluetooth Low Energy to broadcast signals, which are received by a nearby smartphone or central gateway. Through
a mobile app or tracking system, caregivers can set virtual boundaries (geofencing) and receive immediate alerts if the child or pet moves beyond the defined range.
- Wearable BLE tags are compact, low-power devices that can be easily attached to a child’s clothing or a pet’s collar. These tags use Bluetooth Low Energy to broadcast signals, which are received by a nearby smartphone or central gateway. Through
- Impact:
- This solution provides enhanced safety and peace of
mind by allowing real-time tracking and quick response
in case of separation or wandering. It helps prevent
loss or accidents, especially in crowded areas, parks,
or unfamiliar environments.
- This solution provides enhanced safety and peace of
- Implementation
- BLE tags assigned to individuals can be detected by BLE-enabled readers or gateways installed at entry points. As a person approaches, the system automatically verifies their identity based on the unique tag ID, logging attendance or granting access without the need for manual check-ins or physical contact.
- Impact
- This enhances operational efficiency by automating
attendance tracking and improving security. It reduces
human error, eliminates the need for physical ID cards
or biometric scans, and enables seamless access
control in schools, offices, factories, and event venues.
- This enhances operational efficiency by automating
- Implementation
- BLE tags using iBeacon or Eddystone protocols are placed at strategic locations within retail stores or malls.
- When a customer with a compatible app enters the beacon’s range, the tag broadcasts contextual information—such as promotions, product details, or navigation assistance—directly to their smartphone via Bluetooth.
- Impact
- This enhances the shopping experience through personalized, location-aware content delivery. It increases customer engagement, drives in-store traffic to specific products or sections, and boosts sales through timely, targeted promotions.
- Implementation
- BLE tags are securely attached to bicycles, scooters, or rental vehicles and continuously broadcast location signals.
- These signals are received by nearby smartphones or BLE gateways, enabling real-time tracking through a centralized app or platform.
- The system can trigger alerts if a vehicle is moved without authorization, aiding in theft detection.
- Impact
- This improves operational oversight, enhances asset security, and enables efficient fleet monitoring.
- For rental services, it ensures better utilization, reduces loss, and supports data-driven decision-making for vehicle deployment and maintenance.
